NOT LONGER in PRODUCTION – On special request only!  Service and Support still available.

SIPP2000USB-Dual pulse power controller is capable of operating with any DC power supply with floating outputs to upgrade a current averaged DC technology easily to the state-of-the-art pulse-power-control technology. SIPP2000USB-Dual provides the most stable pulsed voltage and current output waveforms by means of the flexible pulse control parameters to meet versatile applications.

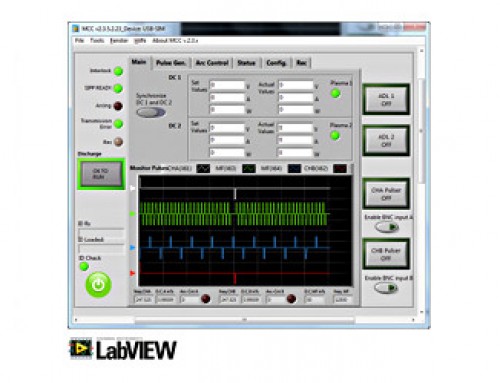

SIPP2000USB-Dual can be locally controlled by any computer that runs WinXP or Win 10 using the MELEC GmbH control center (MCC)- software (developed with National Instruments LabVIEW™). The MCC is able to control two DC Units that features: synchronized ON-OFF of two DC-Units, setting values for voltages, current and power and reading of DC-Unit working parameters.

One of the main features of the SIPP2000USB-Dual is the integrated intuitive user defined pulse generation, as well as the synchronization of up to four SIPP2000USB-Single generators. Superimposition of HiPIMS, MF pulses or Bias for single or dual magnetron sputtering applications are the advantage of this generator.The quick arc-level control function with arc suppression time less than 2µs ensures your applications remain free of any arc damage.The new concept to control the real instant kinetics of this application provides more opportunities to obtain the optimized final solution.

Download Datasheet

Applications for

  • HiPIMS
  • MF
  • Bias

All models feature

  • 2 x +/-1000 V, max. voltage

  • 2 x +/-500 A, max. peak current

  • DC – 50 kHz pulse frequency range

  • 2 independant HiPIMS generators in one housing

  • Arc suppression less than 2 µs

  • Output modes:  DC-, UP+, UP- and  BP

  • Symmetric and Asymmetric voltage output

  • Flexible free pulse generation

  • 4 x Synchron trigger output

  • 1 x Trigger input

  • Intuitive software control (MCC Software)

  • Integrated control  of two ADL DC Units

  • 2 x synchronized pulse channels

  • Reconfigurable for single channel 1000A pulse peak output

Type DC Power (kW) DC Voltage (V) DC Current (A) Pulse Peak Power (kW)
SIPP2000-10-300-D 5 kW / Channel 1000 V / Channel 5 A / Channel 500 kW/ Channel
SIPP2000-10-500-D 5 kW / Channel 1000 V / Channel 10 A/ Channel 500 kW/ Channel
SIPP2000-20-500-D 10 kW / Channel 1000 V / Channel 20 A/ Channel 500 kW/ Channel
